Stay Safe and Compliant with These High Voltage Safety Signs

Why High Voltage Safety Signs Are Critical for Australian Workplaces

High voltage safety signs are mandatory warning devices that protect workers from electrical hazards in Australian workplaces. Here's what you need to know:

Essential Requirements:

• OSHA standard: Any location with voltage over 600 volts must display high-voltage signs
• Signal words: Use "DANGER" for life-threatening hazards, "WARNING" for potential shock risks, "CAUTION" for lower-level electrical hazards
• Colour scheme: Red and black for danger signs, orange and black for warning signs
• Key messages: "Keep Out," "Authorised Personnel Only," "High Voltage," with lightning bolt symbols

Common Applications:

• Electrical switchboards and panels
• Underground cable areas
• Overhead power lines
• Solar installations and battery storage
• Mining and construction sites

In Australian workplaces, electrical incidents remain a serious concern. Whether you're managing a construction site, industrial facility, or commercial building, proper signage isn't just about ticking compliance boxes—it's about preventing potentially fatal accidents.

These signs serve as the first line of defence against electrical hazards, clearly communicating danger levels through standardised colours, symbols, and text. From small vinyl decals on electrical panels to large aluminium signs marking high-voltage areas, the right signage can mean the difference between a safe workday and a tragic incident.

I'm Doug Lindqvist, and through my years in the safety and industrial supply space, I've seen how proper high voltage safety signs can prevent serious workplace incidents. My experience with distributors and end-users across Australia has shown me the critical importance of quality, compliant signage that delivers when it matters most.

Why Every Site Needs High-Voltage Warnings

When it comes to electrical safety in Australian workplaces, the stakes couldn't be higher. The regulatory framework is crystal clear: high voltage safety signs aren't just a good idea—they're a legal requirement that could save lives.

SafeWork Australia guidelines emphasise that electrical hazards pose some of the most serious risks in any workplace. Arc flash incidents are particularly terrifying because they happen in milliseconds, causing severe burns, blindness, or death before anyone can react. These electrical explosions can reach temperatures of 20,000°C—that's four times hotter than the sun's surface.

The 600-volt rule exists for good reason. Above this threshold, electrical energy becomes immediately life-threatening. Even brief contact can cause cardiac arrest or fatal burns. What's particularly dangerous about arc flash events is that you don't need direct contact—they can occur from several metres away when electrical faults create explosive energy releases.

Your regulatory duty under Work Health and Safety legislation means proper signage isn't optional. Beyond legal compliance, your insurance obligations likely require demonstrated risk mitigation measures. Emergency response teams also rely on clear signage to quickly identify hazard zones during incidents.

Research consistently shows that workplaces with proper high voltage safety signs experience significantly fewer electrical incidents compared to those with inadequate warnings. The signs help maintain safe distances and ensure only trained personnel access dangerous areas.

Consequences of Ignoring Signage

The penalties for inadequate electrical signage extend far beyond a simple slap on the wrist. WorkSafe fines can range from thousands to hundreds of thousands of dollars, but that's often just the beginning of your troubles.

Compensation claims from injured workers can be devastating. We're talking about life-changing injuries that result in massive payouts. Then there's the equipment damage from electrical faults—high-voltage incidents don't just hurt people, they can destroy expensive machinery and infrastructure.

Production downtime during safety investigations can shut down entire facilities for weeks. Manufacturing plants, mining operations, and construction sites all grind to a halt while authorities investigate preventable accidents that proper signage could have avoided.

The reputation damage often proves more costly than the immediate financial impact. Electrical safety incidents attract media attention and can permanently damage relationships with clients, suppliers, and skilled workers who may avoid companies with poor safety records.

Who May Enter High-Voltage Areas

High voltage safety signs must clearly communicate that access is strictly limited. The message needs to be unmistakable: only specific, qualified personnel should enter marked areas.

Licensed electricians with appropriate voltage ratings lead the list of authorised personnel. Their qualifications must match the voltage levels present—a domestic electrician isn't qualified for high-voltage industrial work. Trained maintenance technicians with electrical qualifications can also access these areas, but only within their competency levels.

Emergency response teams need access during incidents, while contractors with verified electrical competencies may enter as part of planned work. Supervisors conducting safety inspections can enter, but they should be escorted by qualified personnel.

Access control isn't just about having the right job title. Personnel need valid electrical licences for the voltage levels present, current safety training certificates, and appropriate personal protective equipment. They must understand lock-out/tag-out procedures and know emergency shutdown procedures.

For more detailed guidance on electrical safety requirements, consult SafeWork Australia's official resources.

Types & Standards of High Voltage Safety Signs

When it comes to high voltage safety signs, understanding the different categories helps you choose the right warning for each specific hazard. Australian workplaces typically follow a combination of international standards adapted for our local conditions, creating a clear hierarchy of warnings that workers can instantly recognise.

The foundation of effective electrical signage lies in three primary categories, each serving a distinct purpose. Danger signs represent the most serious category—these are reserved for imminent, life-threatening hazards where immediate death or severe injury could occur. You'll recognise these by their distinctive red oval with white "DANGER" text on a black background, following AS 1319 standards. These signs are mandatory for voltages that pose immediate death risk and should include specific voltage ratings where applicable.

Warning signs step down a level, indicating potential hazards that require caution but aren't immediately life-threatening. These feature an orange header with black text and symbols, making them perfect for areas requiring restricted access. You'll often see procedural instructions included on warning signs, helping workers understand what precautions they need to take.

Caution signs round out the hierarchy, alerting workers to lower-level electrical risks. With their yellow background and black text, these are appropriate for equipment under 600 volts and typically focus on procedural compliance rather than immediate danger.

Every effective high voltage safety sign incorporates essential design elements that transcend language barriers. The lightning bolt pictogram provides universal recognition, while clear, bold typography ensures readability from required distances. For Australia's multicultural workforce, bilingual options are increasingly important, and reflective materials become crucial for low-light conditions. Weather-resistant construction isn't optional for outdoor applications—it's essential for maintaining visibility when workers need it most.

Danger vs Warning: High Voltage Safety Signs Decoded

The distinction between danger and warning signs isn't just about different colours—it's a critical safety communication tool that can genuinely save lives. Understanding when to use each type ensures your signage provides accurate risk information to workers.

Danger signs signal an immediate threat of death or serious injury. These must use the red and black colour scheme specified in AS 1319 and are reserved for voltages above 1000V or within arc flash boundaries. You'll typically see messages like "KEEP OUT" or "AUTHORISED PERSONNEL ONLY" alongside the mandatory lightning bolt symbol for electrical hazards.

Warning signs take a different approach, indicating potential shock hazards that require specific training or precautions. The orange header with black text makes these signs instantly recognisable, and they're appropriate for restricted access areas where trained personnel can safely work with proper procedures. These signs often include procedural requirements or specify required PPE and qualifications.

The choice between these categories depends on voltage levels, potential arc flash energy, and access requirements. When you're unsure, always choose the higher warning level—it's far better to over-communicate danger than risk worker safety through inadequate warnings.

When Are Bilingual High Voltage Safety Signs Needed?

Australia's multicultural workforce often requires signage that communicates effectively across language barriers. The question isn't whether bilingual signs are nice to have—it's about ensuring every worker understands potentially life-threatening information.

Bilingual signs become essential when you have significant non-English speaking worker populations, particularly in industries like construction with diverse subcontractors, mining operations with international crews, or manufacturing plants with multicultural production teams. Temporary workers or contractors from diverse backgrounds may not have sufficient English comprehension for critical safety information, and international students in workplace training programs need clear communication during their learning phase.

Industry-specific considerations play a major role in this decision. Construction sites often host multiple subcontractors with varying language backgrounds, while remote mining locations frequently employ fly-in/fly-out international workers. Agricultural facilities dealing with seasonal workers and manufacturing plants with diverse teams both benefit significantly from multilingual approaches.

Effective bilingual design goes beyond simple translation. The most successful signs combine English with the appropriate second language—often Mandarin, Spanish, or Arabic depending on your workforce demographics. Pictograms that transcend language barriers become even more important, creating clear symbol hierarchy where text supports rather than replaces visual messages. Maintaining consistent colour coding across languages ensures workers can quickly identify danger levels regardless of which language they read first.

Research consistently shows that comprehension rates increase by 40% when critical safety information appears in workers' primary languages. For detailed guidance on implementing multilingual safety signage effectively, our comprehensive guide offers practical insights: Don't Get Zapped: Understanding Hazardous Voltage Signs.

Size, Material & Reflectivity Choices

Selecting appropriate materials and dimensions for your high voltage safety signs isn't just about initial cost—it's about ensuring effectiveness throughout the sign's entire service life. The right combination of size, material, and reflectivity can mean the difference between a sign that protects workers for years and one that fails when it's needed most.

Size selection follows viewing distance requirements, with 7" x 10" signs perfect for electrical panels and small equipment where workers will be close to the hazard. 10" x 14" signs handle standard switchboard applications effectively, while 12" x 18" signs work well for outdoor installations and larger equipment. When you need high-visibility requirements for perimeter fencing or large facilities, 24" x 36" signs ensure warnings are visible from appropriate distances.

Material choice depends heavily on your specific application environment. Aluminium signs offer excellent durability for outdoor applications, resisting UV, chemicals, and weather while handling service temperatures from -40°F to 176°F. These work perfectly for permanent installations and can include pre-drilled mounting holes for easy installation.

Corflute (corrugated plastic) provides a cost-effective solution for temporary installations. Its lightweight nature makes handling easy, making it ideal for construction sites and short-term projects. Available in various thicknesses, corflute offers good value when permanence isn't required.

Vinyl decals excel on smooth surfaces like electrical panels, offering self-adhesive application that's perfect for equipment labelling. Laminated options extend durability significantly, making them suitable for equipment that receives regular cleaning or handling.

Photoluminescent materials bring glow-in-the-dark capability for emergency visibility—absolutely essential for areas with potential power failures. These signs charge from ambient light and glow for hours, making them critical for emergency evacuation routes where normal lighting might fail.

Reflective options improve visibility dramatically in low-light conditions. They're required for vehicle-mounted equipment and prove invaluable for outdoor installations with vehicle traffic. Available in various reflectivity grades, these materials ensure your warnings remain visible when workers need them most.

Choosing & Placing the Right Sign on Site

Getting your high voltage safety signs in the right spots isn't just about slapping them up anywhere—it's about creating a safety system that actually works when people need it most. After years of working with Australian businesses, I've seen how proper placement can prevent serious incidents.

Start with a thorough risk assessment of your site. Walk around and identify every electrical hazard—the obvious ones like switchboards and transformers, but also those sneaky underground cables and overhead lines that can catch people off guard. Each type of hazard needs its own signage approach.

Switchboards and electrical panels are probably the most common placement spots. Mount your signs at eye level, either directly on the equipment or right next to it. Think about how people approach these panels—you want the warning visible from their natural line of sight. Don't forget to consider how cabinet doors swing open, as you don't want signs hidden behind opened doors.

For overhead power lines, ground-level signage becomes critical. This is especially important on construction sites where cranes operate. Your signs need to include minimum clearance distances and be positioned so operators can see them from multiple angles. I've worked with construction companies who've avoided costly incidents simply because their signage clearly communicated height restrictions.

Underground cable routes present unique challenges. Mark these paths with durable, ground-level markers spaced at regular intervals. Include depth information where it's relevant, and always coordinate with utility location services. These signs often get overlooked, but they're crucial for preventing excavation accidents.

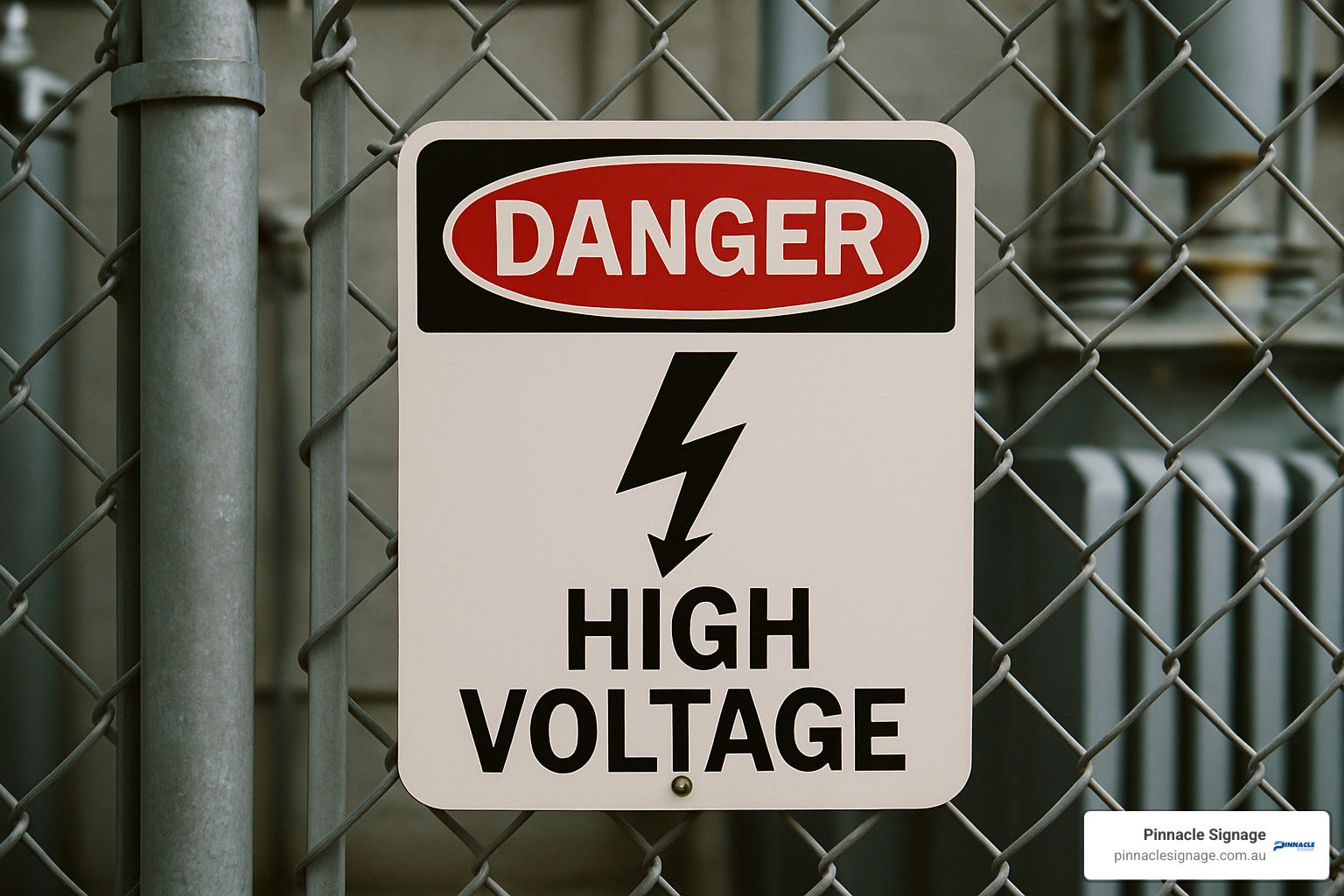

Perimeter fencing around electrical installations needs consistent signage coverage. Space your signs at regular intervals so there's no gap in visibility. Consider both day and night conditions—reflective materials or photoluminescent options might be necessary. Including emergency contact information on perimeter signs can be a lifesaver during incidents.

Height and visibility guidelines matter more than you might think. Mount signs between 1.5 and 2 metres for optimal visibility—high enough to be seen over equipment, but low enough to read clearly. Ensure there's a clear line of sight from where workers typically approach. Watch out for pipes, conduits, or other equipment that might block the view.

Step-by-Step Placement Checklist

Here's the systematic approach that works every time:

First, properly identify your hazard. Determine the actual voltage levels, assess potential arc flash energy, and figure out who needs access. Document where the hazard boundaries are—this information will guide everything else.

Next, select your signal word carefully. Use "DANGER" for those life-threatening voltages that can kill instantly. Choose "WARNING" for areas where only trained personnel should enter. Apply "CAUTION" for lower-level electrical risks that still require procedural compliance. Always include specific voltage information when it's relevant.

Then measure your sightlines thoroughly. Check visibility from every direction people might approach. Look for obstructions or visual barriers that could hide your signs. Consider lighting conditions throughout different shifts—what's visible during the day might disappear at night.

Prepare your mounting surface properly. Clean everything thoroughly before installation and remove any old, damaged signage that might confuse people. Make sure the surface can actually support the sign's weight, especially for larger outdoor installations. Check drainage around outdoor signs to prevent water damage.

Finally, install and secure everything correctly. Use mounting hardware that's appropriate for your conditions. Keep signs level and properly aligned—crooked signs look unprofessional and can reduce credibility. Document installation dates and specifications for your maintenance records.

Common Aussie Use-Cases

Construction sites present some of our most challenging signage requirements. Tower cranes operating near power lines need comprehensive warning systems that include specific height restrictions and emergency procedures. We've worked on major projects across Sydney and Melbourne where overhead clearances created significant risks—proper signage made the difference between safe operations and potential disasters.

Solar farm installations have become increasingly common with Australia's renewable energy expansion. These sites combine DC and AC high-voltage systems with unique hazard profiles. Perimeter signage must address electrical risks while remaining visible across vast outdoor areas. Weather resistance becomes crucial when signs need to perform reliably for decades.

Mining operations often run their own electrical distribution systems in remote locations. Your high voltage safety signs need to withstand extreme weather while communicating effectively to workers from diverse backgrounds. Bilingual options often become essential in these environments.

Retail and commercial buildings house significant electrical infrastructure in basement plant rooms and service areas. Space constraints require compact signage solutions that don't interfere with maintenance access. Shopping centres and office buildings need signs that work for both facility management teams and emergency responders.

Healthcare facilities require specialised approaches that consider patient safety alongside worker protection. Hospitals and aged care facilities have emergency power systems, medical equipment isolation requirements, and backup generators that all need specific warning strategies. The signage must be clear enough for emergency situations while not creating unnecessary alarm for patients and visitors.

Maintaining Signs & Reinforcing Safety

Even the highest-quality high voltage safety signs require ongoing maintenance to remain effective. Environmental factors, vandalism, and normal wear can compromise sign visibility and legibility over time.

Environmental Degradation Factors:

• UV radiation causing colour fading and text illegibility
• Temperature cycling leading to material expansion and contraction
• Chemical exposure from industrial processes or cleaning agents
• Physical damage from weather, debris, or accidental contact
• Vandalism or unauthorised removal

Inspection Schedule Requirements:

Monthly Visual Inspections:

• Check for obvious damage, fading, or missing signs
• Verify signs remain securely mounted
• Confirm visibility isn't obstructed by new equipment or vegetation
• Document any issues requiring immediate attention

Quarterly Detailed Reviews:

• Assess text legibility from required viewing distances
• Check colour contrast against original specifications
• Verify all mounting hardware remains secure
• Review placement effectiveness based on operational changes

Annual Compliance Audits:

• Comprehensive assessment against current safety standards
• Documentation review for installation dates and specifications
• Comparison with updated risk assessments
• Planning for systematic replacement programs

For comprehensive guidance on workplace safety signage maintenance, explore our resource: Making Your Workplace Safe and Secure with High-Quality Safety Signage.

Inspection Frequency & Documentation

Digital Documentation Systems: Modern facilities increasingly use digital inspection apps that streamline sign maintenance tracking. These systems can include:

• Photo documentation of sign conditions
• GPS coordinates for precise location tracking
• Automated reminder schedules for inspections
• Integration with work order management systems
• Compliance reporting for regulatory audits

Record Keeping Requirements: Maintain detailed records including installation dates, inspection findings, maintenance actions, and replacement schedules. This documentation proves essential during workplace safety audits and incident investigations.

Replacement Indicators: Replace signs immediately when:

• Text becomes difficult to read from required distances
• Colours fade beyond recognition standards
• Physical damage compromises structural integrity
• Mounting systems fail or become unreliable
• Regulatory standards change requiring updated designs

Additional Controls Beyond Signage

While high voltage safety signs provide crucial hazard communication, they work best as part of comprehensive safety systems:

Staff Training Programs:

• Initial electrical safety induction for all personnel
• Regular refresher training on hazard recognition
• Specific training for personnel requiring electrical area access
• Emergency response procedures for electrical incidents

Physical Controls:

• Lock-out/tag-out procedures for maintenance work
• Physical barriers preventing unauthorised access
• Insulated tools and arc-rated clothing requirements
• Emergency shutdown systems and procedures

Administrative Controls:

• Permit systems for electrical work
• Regular safety audits and assessments
• Incident reporting and investigation procedures
• Continuous improvement programs based on near-miss events

Frequently Asked Questions about High Voltage Safety Signs

What colours and symbols must appear on a compliant sign?

Getting the colours and symbols right on your high voltage safety signs isn't just about looking professional—it's about instant recognition that could save someone's life.

Danger signs use the unmistakable red oval with crisp white "DANGER" text against a black background. This combination immediately signals life-threatening voltage levels that require absolute restriction. Warning signs feature that distinctive orange header with bold black text, perfect for areas where trained personnel might access but caution is essential. Caution signs rely on yellow backgrounds with black text for lower-level electrical risks.

The lightning bolt pictogram is your universal language translator. Whether your workforce speaks English, Mandarin, or Arabic, that jagged symbol communicates electrical hazard instantly. It's particularly valuable on Australian construction sites where crews often include workers from diverse backgrounds.

Every compliant electrical hazard sign should include this internationally recognised lightning bolt symbol. It bridges language barriers and provides that split-second recognition that matters when someone's approaching a dangerous area.

How far should a high-voltage sign be readable from?

The viewing distance requirements for high voltage safety signs depend entirely on how people approach the hazard and how quickly they need to recognise the danger.

For standard pedestrian areas around switchboards and electrical panels, your signs must remain clearly legible from at least 3 metres away. This gives workers enough time to recognise the hazard and adjust their approach accordingly.

Vehicle access areas demand much greater visibility—typically 6 to 10 metres minimum. Consider a delivery truck approaching a transformer or mobile crane working near overhead lines. The driver needs time to process the warning and react safely.

Emergency situations require even greater distances. When someone's responding to an incident, adrenaline affects decision-making. Clear, early warning becomes absolutely critical.

Here's a practical calculation that works well: plan for 25mm text height for every 3 metres of required viewing distance. High-traffic areas or locations where split-second decisions matter warrant larger text sizes. Remember to consider both day and night visibility—what's readable in bright sunlight might disappear under poor lighting conditions.

How often do signs need replacing under AS 1319?

AS 1319 takes a performance-based approach rather than dictating arbitrary replacement schedules. This makes sense because a quality aluminium sign in a protected indoor location will vastly outlast a vinyl decal exposed to the harsh Australian sun.

Replace your signs when colours fade beyond recognition standards—if someone can't immediately distinguish red from orange, the safety message fails. Text legibility from required distances provides another clear trigger. When maintenance staff start squinting to read voltage warnings, it's time for replacement.

Physical damage that compromises sign integrity demands immediate action. Cracked mounting points, torn materials, or weather damage that affects visibility all signal replacement time. Material degradation affecting weather resistance becomes particularly important for outdoor installations exposed to UV radiation and temperature extremes.

Typical lifespans vary significantly by material and conditions. Quality aluminium signs often last 10 to 15 years in outdoor Australian conditions, making them excellent long-term investments. Properly laminated vinyl decals typically provide 5 to 7 years of reliable service. Corflute signs, while cost-effective for temporary installations, usually need replacement every 2 to 3 years under intense Australian sun exposure.

Photoluminescent materials that provide emergency visibility generally maintain effectiveness for 5 to 10 years, depending on ambient light exposure and usage patterns.

Regular inspection matters more than rigid replacement schedules. Document your sign conditions during routine safety audits and replace based on actual performance rather than calendar dates. A well-maintained sign in a protected location might outlast its expected lifespan, while harsh environmental conditions could necessitate earlier replacement.

The key is establishing a systematic inspection routine that catches deterioration before it compromises safety communication.

Conclusion

Getting your high voltage safety signs right isn't just about avoiding fines—it's about creating a workplace where everyone goes home safely each day. Across Australian worksites, from busy construction zones to quiet hospital plant rooms, these signs stand as silent guardians against electrical hazards that can strike without warning.

The journey through electrical safety signage might seem complex at first glance, but it really comes down to understanding your specific workplace needs. Whether you're dealing with life-threatening high-voltage equipment requiring bold danger signs, restricted access areas needing clear warning signs, or general electrical equipment where caution signs do the job, the right signage speaks clearly when seconds count.

What makes signage truly effective goes beyond just hanging a sign on the wall. It's about choosing the right signal words, placing signs where they'll actually be seen, and maintaining them so they remain crisp and readable year after year. When your electrical safety signage is properly selected, strategically placed, and well-maintained, it becomes part of a safety culture that protects everyone on site.

Regular inspections and timely replacements might seem like small details, but they're what separate truly safe workplaces from those just going through the motions. When workers see well-maintained, clearly visible safety signage, it reinforces that their safety genuinely matters.

Building this kind of safety culture requires partners who understand the stakes. At Pinnacle Signage, we've seen how quality electrical safety signage makes the difference between close calls and safe outcomes. Our focus on durable materials, precise manufacturing, and responsive service ensures your signs perform when lives depend on them.
